| Spartan 6090 Standard Features | Information (Single Phase System) |
|---|---|
| Spindle system | 2.2kW water-cooled spindle with chiller |
| Mechanical drive | Ballscrew on XYZ |
| Drive system | High-Performance stepper drives |
| Control system | NK105 hand controller |
| Vacuum bed type | Yes – Matrix Table with T-Slot |
| Vacuum system | Yes – including 2.2kW vacuum pump |
| Extraction System | Yes |
| Software package | We advice Vectric V Carve Pro |
| Spartan 1313 Standard Features | Information (Single Phase System) |
|---|---|
| Spindle system | 3kW water-cooled spindle with chiller |
| Mechanical drive | TBI ballscrew on Z, helical rack & pinion on X, Y |
| Drive system | High-Performance stepper drives |
| Control system | NK105 hand controller |
| Vacuum bed type | Yes – Matrix Table with T-Slot |
| Vacuum system | Yes – including 2.2kW vacuum pump |
| Extraction System | Yes |
| Software package | We advice Vectric V Carve Pro |
| Spartan 1325 / 1530 / 2030 Standard Features | Information (3-Phase Systems) |
|---|---|
| Spindle system | 6kW High-Performance air cooled spindle with chiller |
| Mechanical drive | TBI ballscrew on Z, helical rack & pinion on X, Y |
| Drive system | High-Performance stepper drives |
| Control system | NK105 hand controller |
| Vacuum bed type | Yes – Matrix Table with T-Slot |
| Vacuum system | Yes – including 5.5kW vacuum pump (qty bed dependant) |
| Extraction System | Yes |
| Software package | We advice Vectric V Carve Pro |

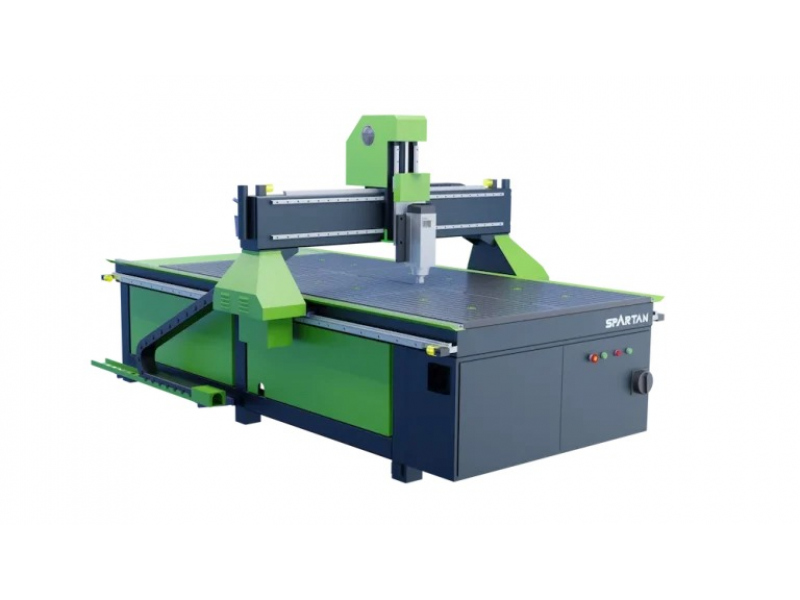

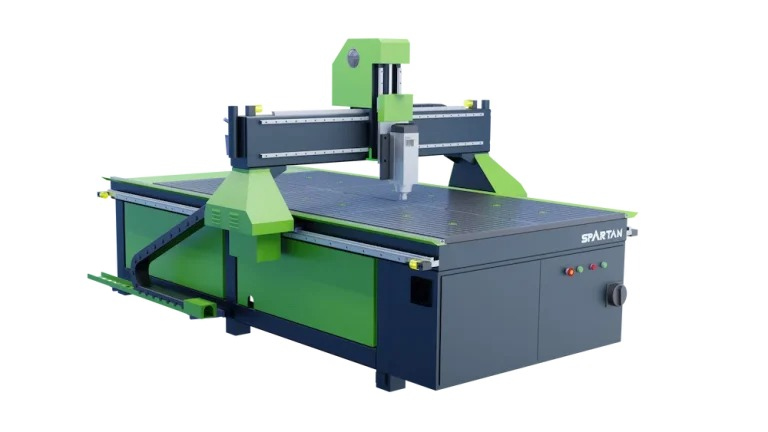

The days of settling for hobbyist-built CNC machines are over with our Spartan CNC range. Our CNC routers are engineered to last and deliver excellent performance, all at a new low price! We offer a wide range of sizes to choose from, including:
600 x 900 x 150 mm
1300 x 1300 x 200 mm
1300 x 2500 x 200 mm
1500 x 3000 x 200 mm
2000 x 3000 x 200 mm
