| Apollo 4 Axis Standard Features | Information |
|---|---|
| Control System | Syntec 4 axis/auto tool change control |
| High Performance Spindle System | 9.0KW (12hp) ER32 air cooled spindle system 24,000rpm with automatic tool change function. 8 x ISO 30 tool holders/positions. |
| Vacuum material holding system | The multi-zone vacuum allows for controlled vacuum areas across the bed, POD and Rail systems for side processing. |
| Mechanical drive | Helical rack and pinion X & Y axis, with reciprocating ball screw on the Z axis. |
| Drive system | Rapid Servo drives YASKAWA. |
| Linear guide rails/carriers | HIWIN oil inject centralised linear rail lubrication. |
| Material Positioning Stops/Guides | Pneumatic pop-up end stops for material location. |
| Vacuum system | Yes – Multi-zone matrix bed including pump system and filter. |
| Extraction system | Enhanced, ‘Focused’ dust extraction system included. |
| Tool cooling | Integrated pneumatic cutter cooling/lubrication system. |
| Safety features | Modular Safety fences with optical IR guarding. |
| Software package | AlphaCam Standard Is required (or similar – ask for options). |
| Installation | Our professional installation team will fully commission your new machine – It is the customer’s responsibility to ensure they have the correct electrical and air outputs (we will advise you on what is required). |
| Available in the following bed sizes: |
|---|
| 1300 x 2500 |
| 1500 x 3000 |
| 2000 x 3000 |
| 2000 x 4000 |
| Custom bed sizes are also available. |

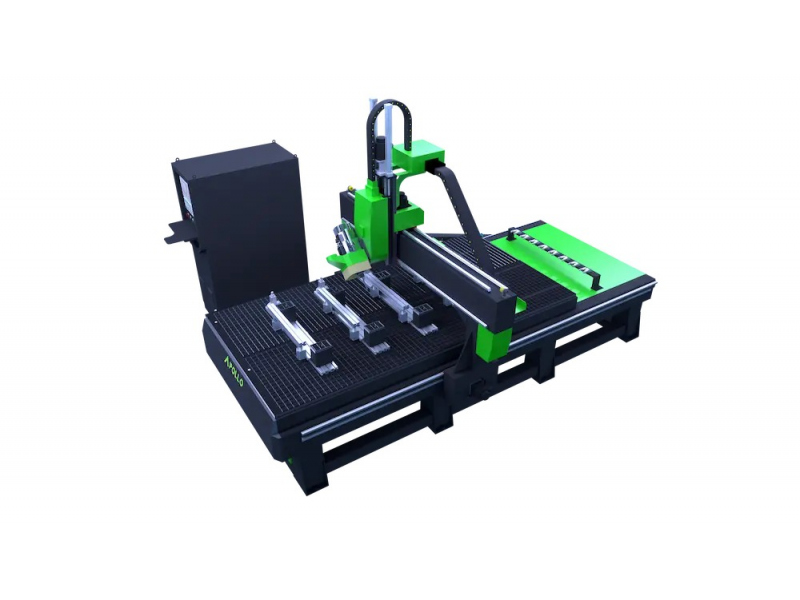

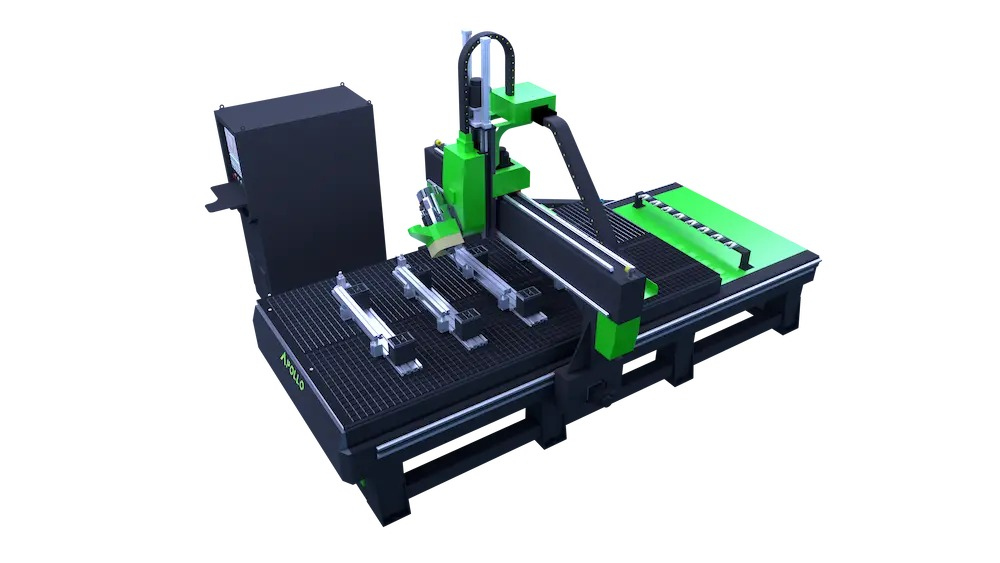

Introducing the brand new range of Apollo 4 Axis CNC routers, equipped with the world-renowned Syntec control system to power all operational functions, including the all-new 4 Axis 9.0kW Auto Tool Change Spindle System.
Control the unit via the control podium and the MPG pendant for precise control over your CNC router. You can also connect the unit to your network for easy file transfer to and from the CNC machine.
This 4 Axis machine offers both side control and your standard 3 Axis CNC operation, making it perfect for processing doors, frames, and furniture. With advanced closed-loop servo motors (YASKAWA), the Apollo 4 Axis offers high-speed operation with versatile productivity options.
