High power Fibre Laser Cutters (4th Gen) can be configured with impressive laser powers froma selection of 6kW, 8kW, 15kW, 20kW and 30kW systems. Auto exchange shuttle tables quality performance and more…
High Powered Industrial Metal Cutters UK!
| Specification | Item |
|---|---|
| Model Name | SF3015H High Power |
| Laser Power (kW) | 6kW | 8kW | 12kW | 15kW | 20kW | 30kW |
| Working Area (mm) | 3050*1530 | 4050*2030 | 6050*2030 | 6050*2530 | 8050*2530 | 12100*2530 |
| X/Y Axis Positioning Accuracy(mm) | ±0.05mm |
| X/Y Axis Repeat Positioning Accuracy(mm) | ±0.02 |
| Max Speed | 130m/min |
| Max Acceleration | 1.0G |
| Safety Enclosure | Included |
| Shuttle Exchange Table | Included |

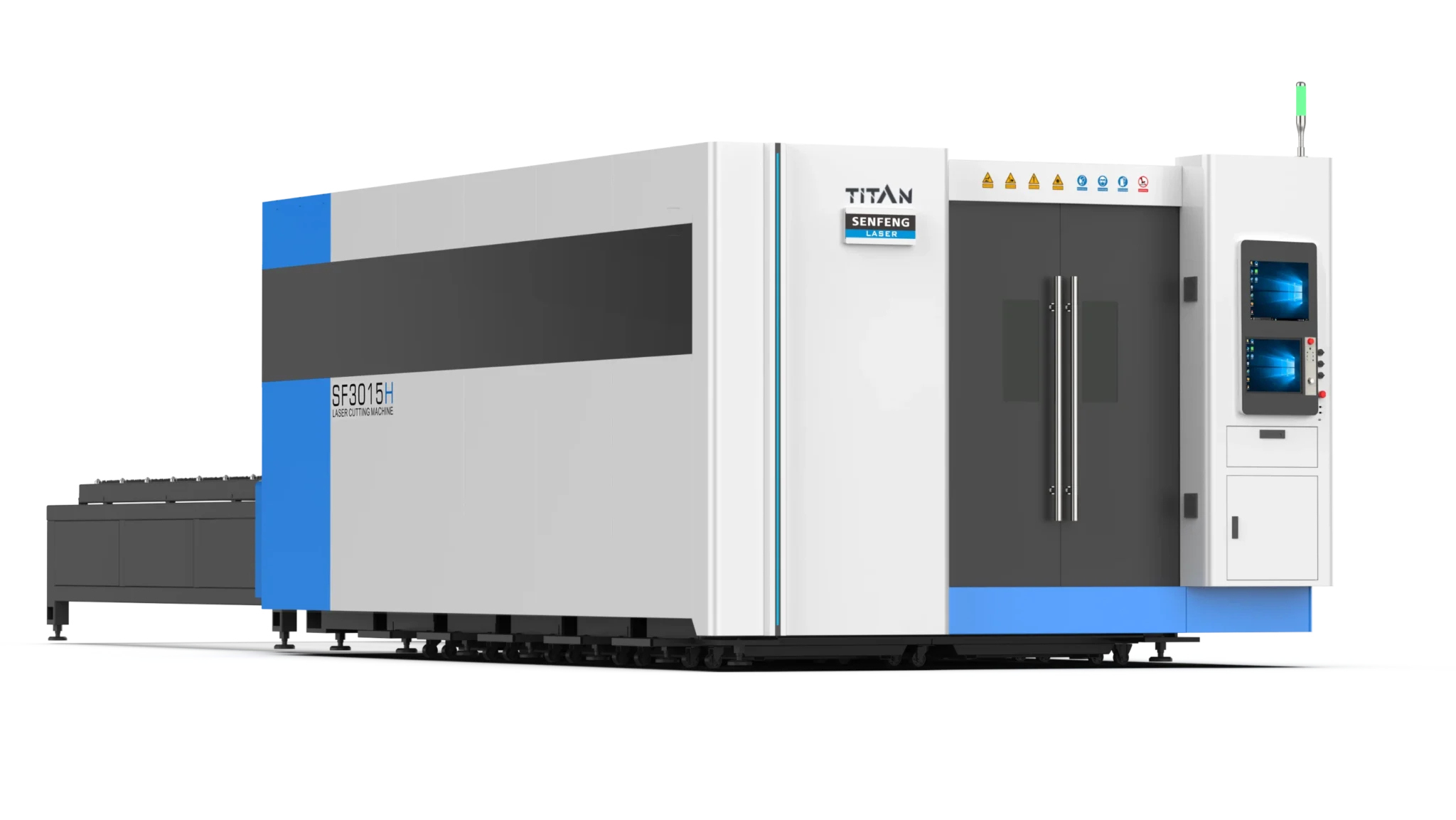

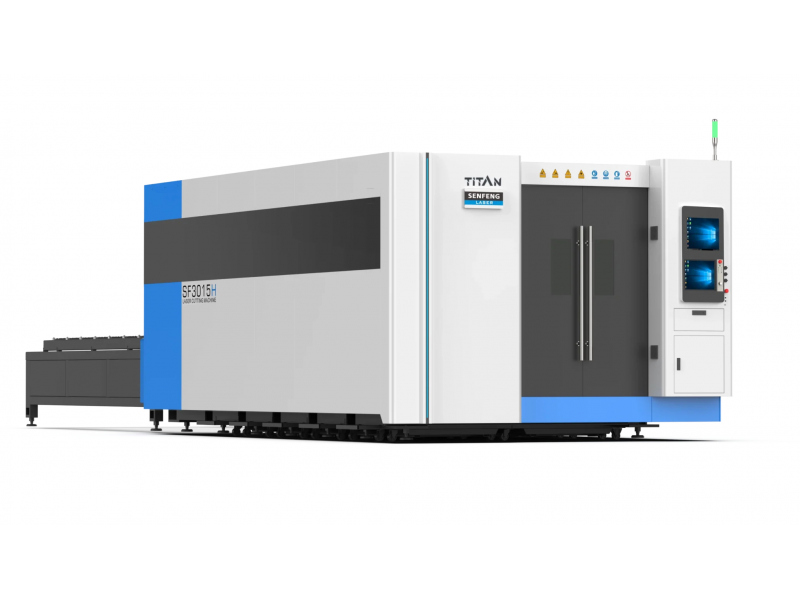

The High Power 4th Gen Fibre Laser Cutter SF3015H is specifically engineered for operations requiring high power, ranging from 6kW to 30kW. It features a full-protection cover, designed to shield workers from laser radiation and to minimise environmental pollution. This machine is also fitted with auto-exchangeable shuttle platforms, enhancing operational efficiency by reducing the time required for loading materials. The exchange platform is notably efficient, completing the exchange process in just 20 seconds.
