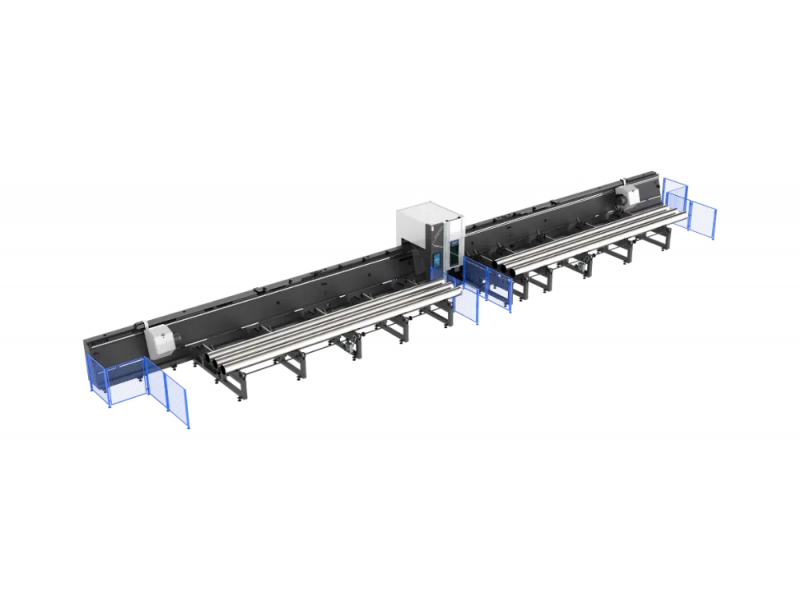

The Ultra Heavy Duty SF12050HT tube laser is designed for ultra heavy tubes and profile cutting. With its laser power range from 4kW to 12kW it can process round tubes from 50-500mm with is vertically mounted rail system
Powerful, Heavy Duty Tube Cutter!
| Specification | Item |
|---|---|
| Model Name | SF12050HT (12 mtrs 500mm chuck design) |
| Laser Power (kW) | 4kW | 6kW | 8kW | 12kW |
| Pipe Processing Range(Round Tube) | φ50-φ500mm |
| Min Clamping Wall Thickness (mm) | ≥ 3mm |
| Pipe Processing Range(Square Tube) | 50×50~500×500mm |
| Max Speed | 40 m/min |
| Positioning Accuracy | ±0.01 |
| Repeated Positioning Accuracy | ±0.03mm |
| Max chuck Speed | 40r/min |
| Max Acceleration | 0.3G |
| Max Table Load | 2000KG |

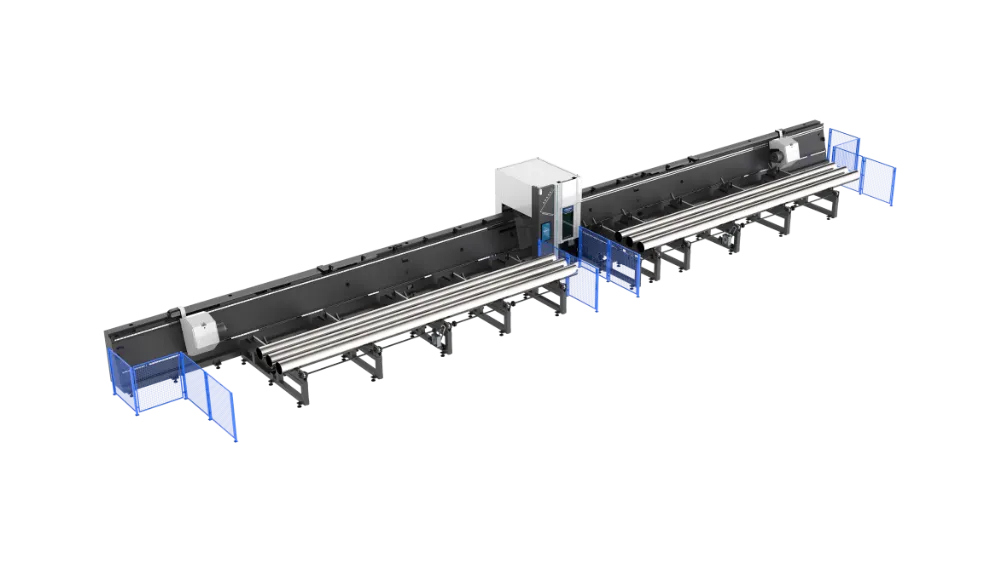

The SF12050HT tube laser cutting machine is engineered for cutting ultra-heavy tubes and profiles, featuring laser power options from 4kW to 12kW and can process tube at upto 12 mtrs in length with a 4X chuck system that can hadle upto 500 mm dia round and square tube.
Its design includes a side-attached machine bed, enhancing stability, increasing load capacity, and significantly improving shock absorption.
This ensures superior cutting precision. The machine is equipped with a four-chuck system, allowing for reverse cutting operations. This facilitates complete processing of long tubes, achieving zero waste and maximising material utilisation for cost efficiency.
