This 3 chuck design allows for larger lengths of material, available as 6-12 mtr models with 240 and 350mm dia processing . It’s capable of cutting round, square, rectangular in addition to L, U and H shaped profiles. Zero Tailing!
High Powered Industrial Metal Cutters!

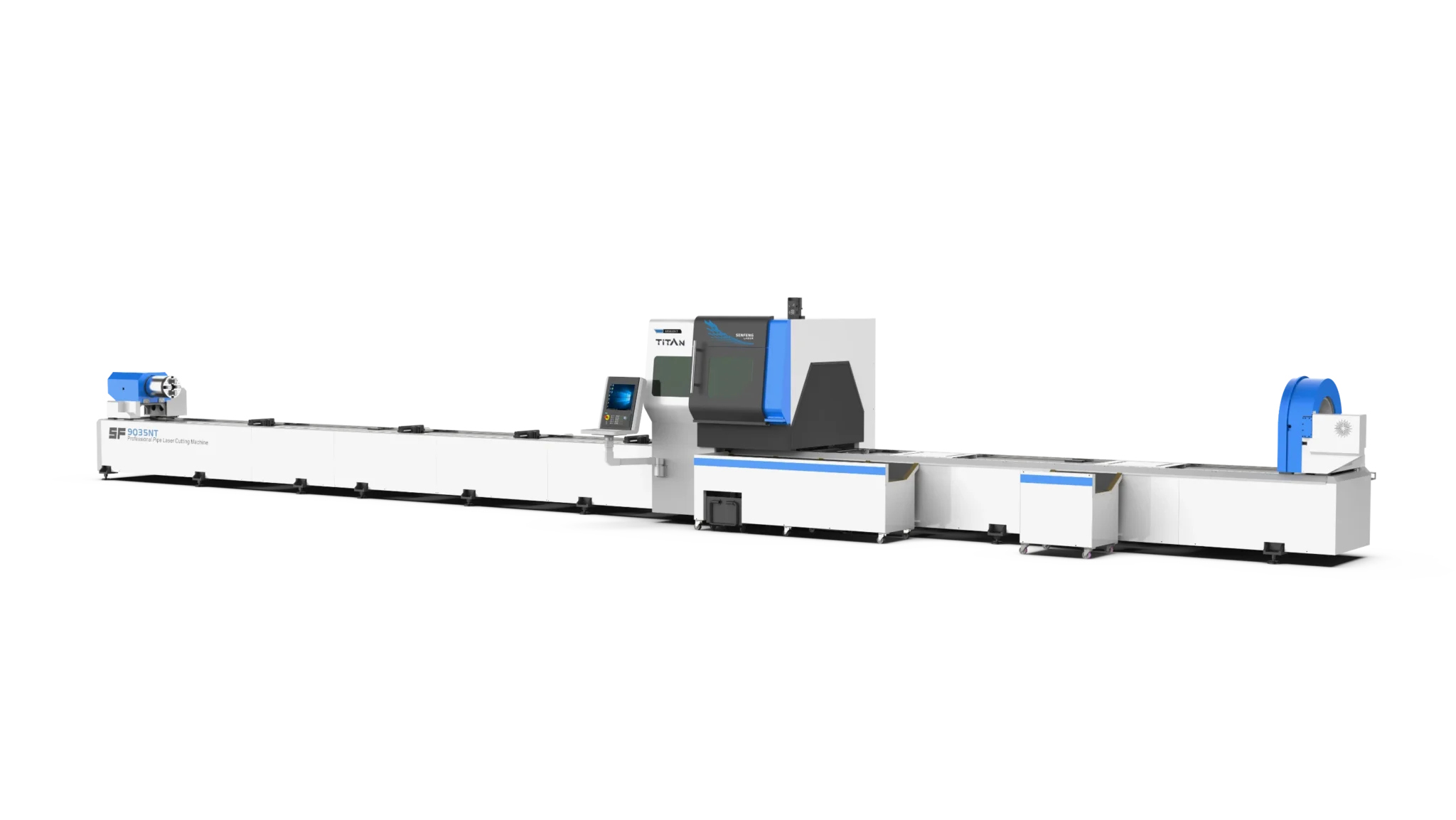

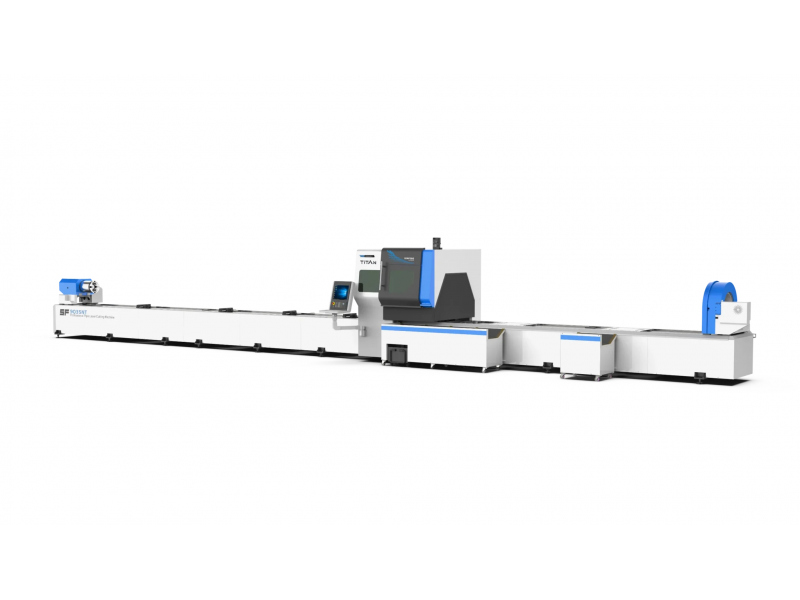

The SF9035NT tube laser cutting machine enhances processing capabilities with its ability to handle tube lengths up to 9 meters and diameters up to 350mm.
It’s versatile, cutting various profiles like round, square, and rectangular tubes, and L, U, and H shapes. Its innovative three-chuck design, featuring a moving chuck in the middle, offers zero tailing, enhancing accuracy and stability. Equipped with an advanced bus CNC system and cutting software, it delivers high-speed flash cutting, setting a new standard in precision and efficiency.
The machine’s innovative three-chuck design ensures zero waste in production and maximises raw material use. It features an adjustable chuck to accommodate long workpieces and a front clamp with a full-stroke square design, eliminating the need for jaw replacement and offering a broader clamping range.
| Specification | Item |
|---|---|
| Model Name | SF9035NT (3 Chuck) |
| Laser Power (kW) | 1.5kW | 2kW | 3kW | 4kW | 6kW |
| Pipe Processing Range(Round Tube) | φ20-φ350mm |
| Pipe Processing Range(Square Tube) | 20×20~350×350mm |
| Max Speed | 80 m/min |
| Positioning Accuracy | ±0.05 |
| Repeated Positioning Accuracy | ±0.03mm |
| Max chuck Speed | 75r/min |
| Max Acceleration | 0.6G |
| Max Table Load | 700KG |
The SF9035NT Three-Chuck Tube Laser Cutting Machine stands out for its advanced capabilities in handling longer and thicker tubes, up to 9 meters in length and 350mm in diameter, across various profiles including round, square, rectangular, and more complex shapes like L, U, and H profiles.
Its unique three-chuck design, with a movable middle chuck, ensures optimal material utilisation by achieving true “0” tailing, enhancing both accuracy and stability.
Coupled with a powerful CNC system and sophisticated cutting software, the SF9035NT promises high-speed, precision cutting, making it a versatile choice for industries requiring detailed and efficient tube processing.
This tube laser cutting machine is ideal for sectors such as aerospace, metal fabrication, machine manufacturing, rail transport, automobile production, and food machinery.
It offers unparalleled precision and efficiency in heavy tube-cutting tasks, making it an essential tool for businesses operating within these industries seeking high-quality cutting solutions.
