With its outer dia of upto 220 mm and max processing length of 6m the SF6000 range is perfect for a wide range of customer applications. It can also be configured with autoload/unload option for increased versatility.
Great Price, Exceptional Performance!

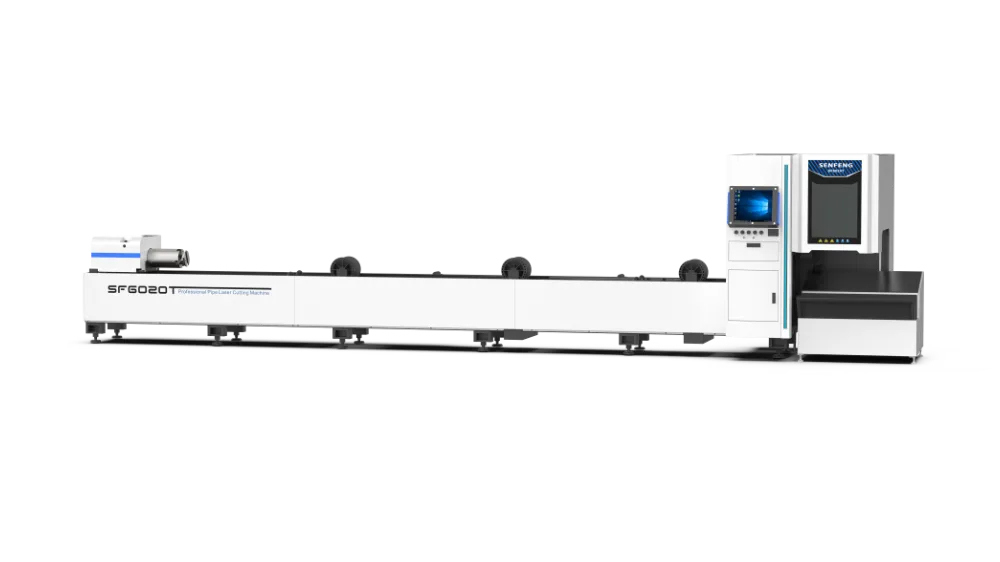

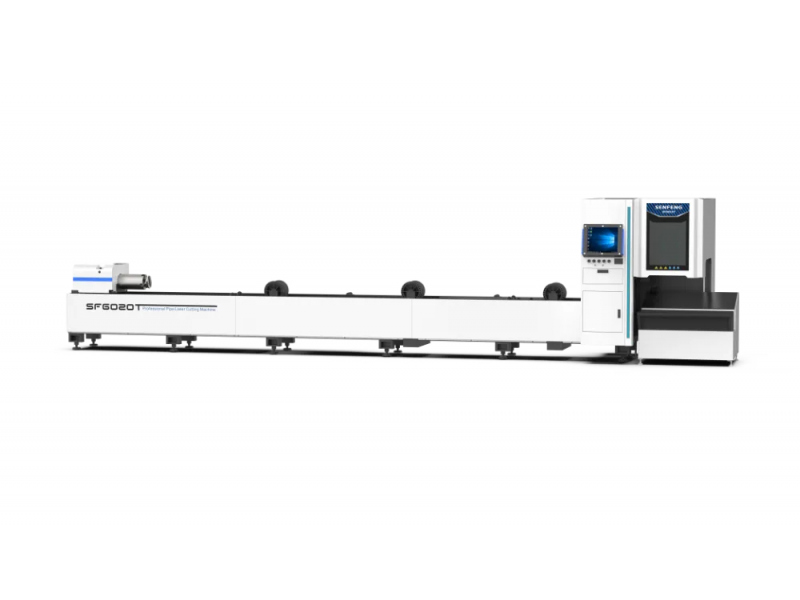

This SENFENG Tube Fibre Laser Cutter is designed for precision and efficiency in pipe processing across industries such as construction, fabrication and oil and gas.
With capabilities to handle various pipe diameters and thicknesses, the machine ensures cutting accuracy and stability. Key features include pneumatic chucks for auto clamping, high-speed cutting supported by a high-strength bed, and support wheels for different pipe/profile materials.
Tailored for professionals, this impressive fibre laser cutter offers reliable and efficient solutions for pipe processing enterprises.
| Specification | Item |
|---|---|
| Model Name | SF6020T |
| Laser Power (kW) | 1.5kW | 2kW | 3kW | 4kW | 6kW |
| Pipe Processing Range(Round Tube) | φ10-φ220mm |
| Pipe Processing Range(Square Tube) | 10×10-150×150mm |
| Positioning Accuracy | ±0.05 |
| Repeated Positioning Accuracy | ±0.02mm |
| Max chuck Speed | 100r/min |
| Max Speed | Maximum Speed |
| Max Acceleration | 1.0G |
| Max Table Load | 150KG |
| Specification | Item |
|---|---|
| Model Name | SF6024T |
| Laser Power (kW) | 1.5kW | 2kW | 3kW | 4kW | 6kW |
| Pipe Processing Range(Round Tube) | φ20-φ240mm |
| Pipe Processing Range(Square Tube) | 20×20-240×240mm |
| Positioning Accuracy | ±0.05 |
| Repeated Positioning Accuracy | ±0.03mm |
| Max chuck Speed | 100r/min |
| Max Speed | Maximum Speed |
| Max Acceleration | 0.8G |
| Max Table Load | 250KG |
| Specification | Item |
|---|---|
| Model Name | SF6035T |
| Laser Power (kW) | 1.5kW | 2kW | 3kW | 4kW | 6kW |
| Pipe Processing Range(Round Tube) | φ20-φ350mm |
| Pipe Processing Range(Square Tube) | 20×20-350×350mm |
| Positioning Accuracy | ±0.05 |
| Repeated Positioning Accuracy | ±0.03mm |
| Max chuck Speed | 100r/min |
| Max Speed | Maximum Speed |
| Max Acceleration | 0.6G |
| Max Table Load | 700KG |
