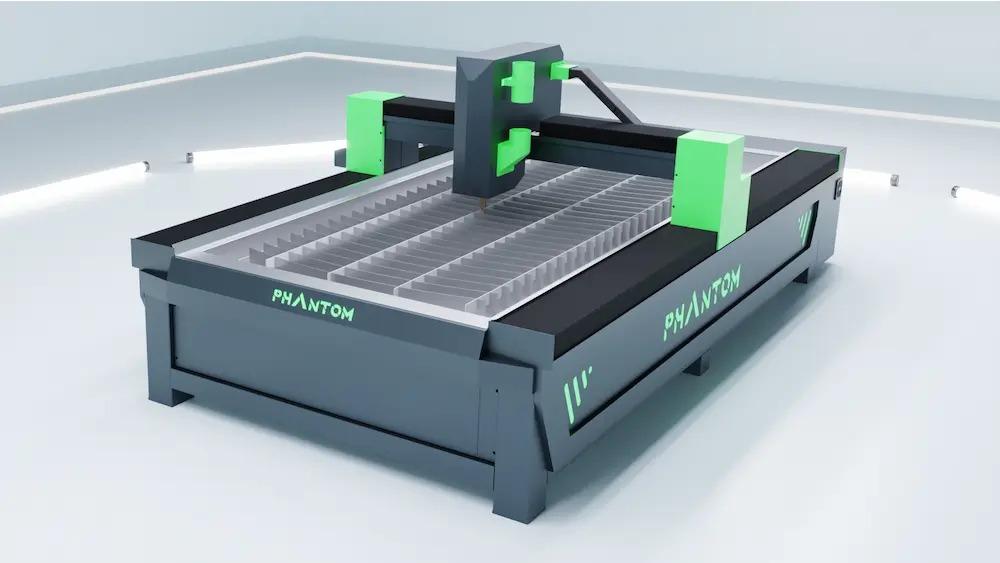

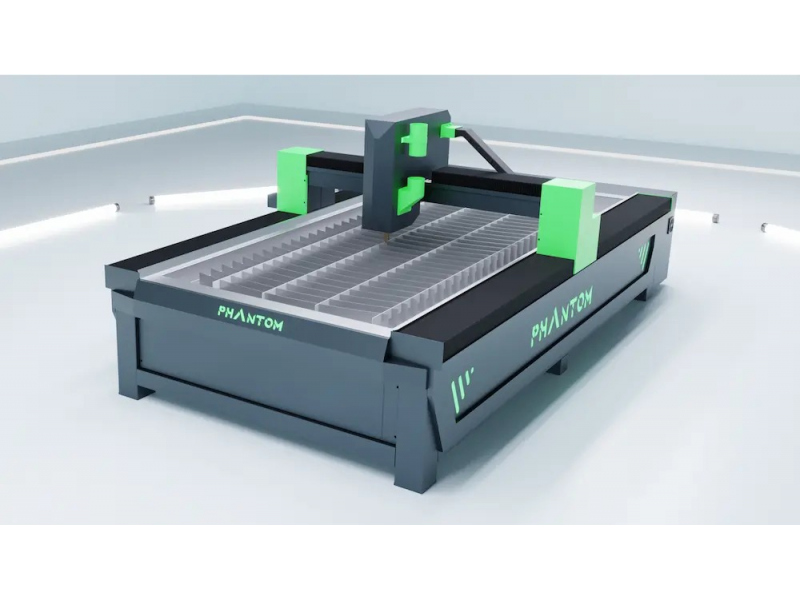

CNC PLASMA CUTTER PHANTOM

About our CNC Plasma Cutting Tables

Mantech Phantom CNC Plasma Cutting Tables offer industrial-grade cutting solutions for a variety of metal fabrication applications. Engineered for precision, durability, and ease of use, these tables are designed to maximise productivity while ensuring the highest quality of cut.

Key Features

Robust Welded Steel Base Frame: Offers high durability and stability for heavy-duty operations.
Stainless Steel Water Tray: Features a quick-emptying drain system for easy maintenance.
3-Side Full Sheet Loading: Allows for streamlined and efficient material handling.
Adjustable Levelling Feet: Ensures optimal alignment and stable operation.
Side-Mounted Ball Transfer Rollers: Make plate loading effortless and efficient.
Electrical Cabinet: Centralises the CNC control and display unit for easy operation.
Torch with Collision Sensors: Minimizes damage to the torch, extending its lifespan and functionality.

Mechanical Design
Bed Sizes (mm)	Available in 1400 x 1400, 1400 x 2600, 1600 x 3100, 2000 x 3000, 2000 x 4000
Square Linear Guide Rail with Rack & Pinion	Delivers precision and stability for XY axis movements.
Cylindrical Linear Guide Rail with Reciprocating Ball Screw	Specially designed for Z-axis accuracy.
Dual Drive Y-Axis	Enhanced control and performance operation.

Control System
3-Axis Control System	Utilises Closed Loop Hybrid Driver technology for XYZ axes.
MTECH CNC Motion Control System	Delivers precision and stability for XY axis movements.
THC (Torch Height Control):	Incorporates Microstep Digital Torch Height Control and High-Speed Precision Arc Voltage Control.
Dual Drive Y-Axis	Enhanced control and performance operation.

Software and Additional
Cad-Cam Vectric Cut 2D Software:	Includes a CAD design package and can import various file formats like DWG, DXF, PDF, etc.
Component Nesting	Material optimisation through intelligent nesting features.
Delivery to Site	Included with the purchase.
Power Max Package	Consists of a 50 ft torch lead and remote on/off switching.
Machine Interface Cable	Comes with a voltage divider signal.
Air Filtration Kit	Includes a 1-micron filter and auto-drain moisture separator.
